8 Port Gigabit Fiber Optic Switch , Dual Fiber Optical Network Switch 20KM

Product Categories

Shenzhen Optfocus Technology Co., Ltd.

Contact Now

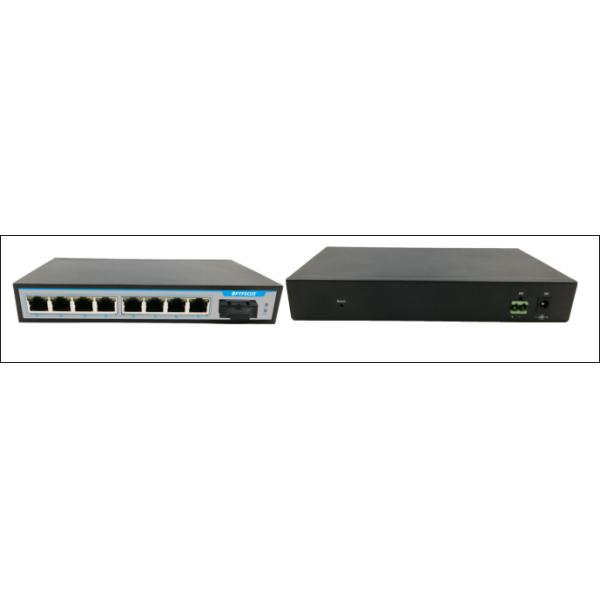

Name: 8 Port Gigabit Fiber Optic Switch Dual Fiber Optical Network Switch 20KM
Brand: OPTFOCUS
Price: 1 USD

Brand Name : OPTFOCUS

Model Number : OFS-GSF1T8S-20

Place of Origin : Shenzhen China

MOQ : 1

Payment Terms : T/T

Supply Ability : 5000 pieces per one week

Delivery Time : 5-7 working days

Packaging Details : 306mm×152 mm× 55mm

Product Name : 8-port 10/100/1000Mbps + 1-port 1000Mbps Fiber

Product Model : OFS-GSF1T8S-20

Power Supply external PS : Input: AC100 ～ 250V, Output:DC5V 2A.

Environment temperature : 0 ～ +55℃

Max power : 5W

Product Weight : 0.5 KG

Product size : 190mm×104mm× 29mm

Contact Now

high reliable Fiber optic switch 8 port gigabit and 2 gigabit SFP Dual fiber SM with 20KM

Technical items	Description
Product Name	8-port 10/100/1000Mbps + 1-port 1000Mbps Fiber
Product Model	OFS-GSF1T8S-20
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode:550M- 2KM
	Single-mode: 20/40/60/80/100KM
	Fiber port :SC/ST/FC Optional
Performance Specification	Bandwidth: 10Gbps
	Packet Buffer Memory:1M
	Packet Forwarding Rate:1488000pps/port
	MAC Address Table:4K
Forwarding Mode	Store-and-Forward
LED Indicators	Power: PWR;FX Link/Act;TP 1000;
LED Indicators	TP Link/Act
Power Supply	Adapter:
Power Supply	Input: AC100 ～ 250V, Output:DC5V 2A.
Max power	5W
Environment temperature	0 ～ +55℃
Storage temperature	-20 ～ +70℃
Humidity	5% ～ 90%
Installation	DIN-Rail or Wall mounts,Optional,Default device is not
Packing List	1× Switch
	1×User Manual/Certificate of quality/Warranty card
	1×power adapter
MTBF	100,000 hours
Weight & Size	Product Weight: 0.5 KG
	Packing weight: 1.1 KG
	Product size (L×W×H):190mm× 104mm× 29mm
	Packing size(L×W×H): 306mm×152 mm× 55mm
Warranty	1-years

Most popular & high quality 8ports 10/100/1000M+1port 1000M SM 20KM Fiber Switch
